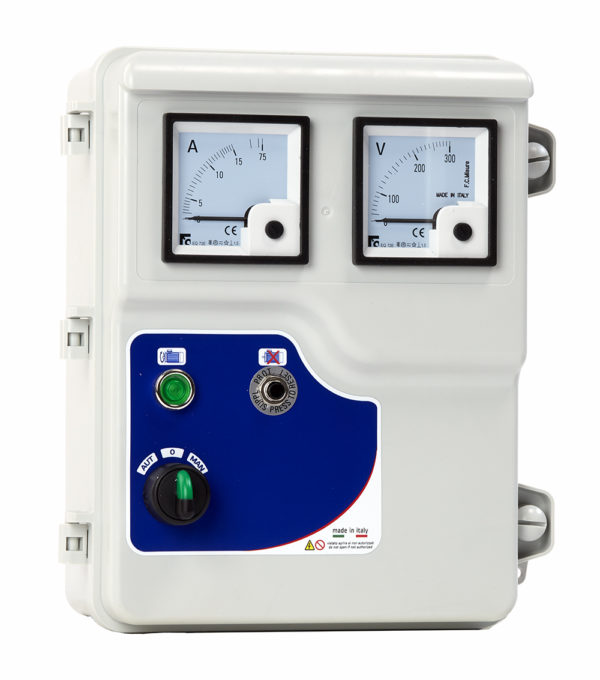

Direct starting electromechanical control panel 1 motor with capacitor, voltmeter, ammeter and contactor

GENERAL SPECIFICATIONS

  • Operating voltage 230Vac ±10% 50/60Hz
  • Selector switch for the automatic -0- manual operation (stable)
  • Running light
  • Analog ammeter 72×72
  • Analog voltmeter 72×72
  • Running capacitor
  • Contactor
  • Thermal circuit breaker (external reset)
  • Connection terminal board
  • External thermoplastic box
  • Cable glands
  • Protection degree IP55
  • Operating temperature -5/+40°C

PROTECTIONS

  • Maximum current protection

INPUTS/OUTPUTS

  • Input for pressure switch or float switch

SINGLE-PHASE 230Vac ±10% 50/60Hz

CODE TYPE POWER THERMAL CAPACITOR DIMENSIONS mm WEIGHT BOX
kW HP PROTECTION (A) A-H L-W P-D Kg
SA611.04/16L BASIC 1 AVC 230 0,5 0,37 0,5 4 16µF 285 245 140 2,4 03
SA611.04/20L BASIC 1 AVC 230 0,5 0,37 0,5 4 20µF 285 245 140 2,5 03
SA611.06/20L BASIC 1 AVC 230 0,75 0,55 0,75 6 20µF 285 245 140 2,5 03
SA611.06/25L BASIC 1 AVC 230 0,75 0,55 0,75 6 25µF 285 245 140 2,5 03
SA611.07/30L BASIC 1 AVC 230 1 0,75 1 7 30µF 285 245 140 2,5 03
SA611.07/35L BASIC 1 AVC 230 1 0,75 1 7 35µF 285 245 140 2,5 03
SA611.10/40L BASIC 1 AVC 230 1,5 1,1 1,5 10 40µF 285 245 140 2,5 03
SA611.13/50L BASIC 1 AVC 230 2 1,5 2 13 50µF 285 245 140 2,6 03
SA611.13/60L BASIC 1 AVC 230 2 1,5 2 13 60µF 285 245 140 2,6 03
SA611.15/60L BASIC 1 AVC 230 2 1,5 2 15 60µF 285 245 140 2,6 03
SA611.18/70L BASIC 1 AVC 230 3 2,2 3 18 70µF 285 245 140 2,6 03
SA611.18/80L BASIC 1 AVC 230 3 2,2 3 18 80µF 285 245 140 2,7 03



OPTIONALS

CODE TYPE
OP100.02/0 Automatic -0- manual selector switch (from stable to unstable)
OP00.10 Couple of brackets for collar (reference BOX 03-04)
