THREE MOTORS PLUS

THREE MOTORS PLUS

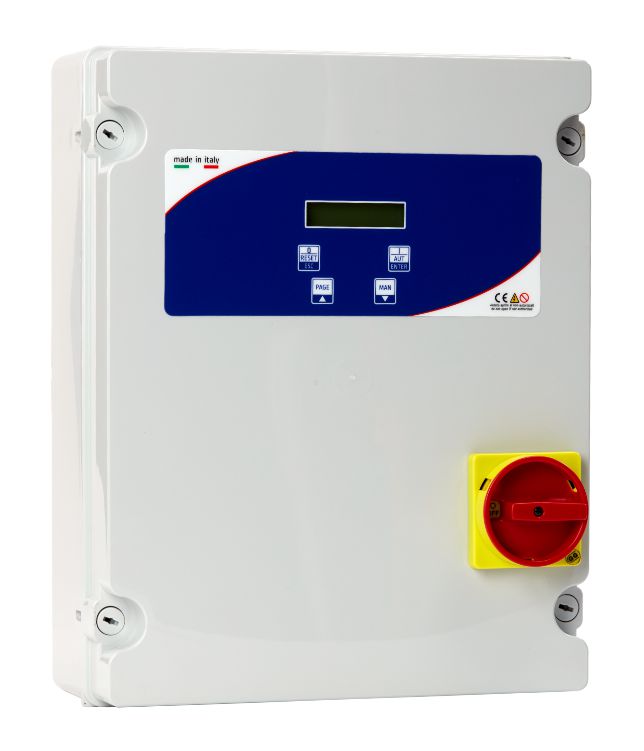

Direct starting electronic control panel 3 motors for pressure booster with display

  • Multi application control panel
  • Motor’s data auto learning
  • Events and alarms data logger
  • Protection for motherboard
  • Remote control SALUPO CONNECT

GENERAL SPECIFICATIONS

  • Operating voltage 400Vac +15/-20% 50/60Hz
  • General disconnecting switch with door lock
  • Button for automatic operation
  • Button for manual operation (stable/unstable)
  • Auxiliary circuit protection fuse
  • Motors’ protection fuse
  • N°3 contactors
  • External thermoplastic box
  • Cable glands
  • Protection degree IP65
  • Operating temperature -5/+40°C

ADVANTAGES

  • Multilingual Display LCD to visualize:
    • Operating voltage
    • Current for each motor
    • Hour counter for each motor
    • Pressure switches status
    • Level status
    • System pressure with pressure transducer
    • All information concerning the operation of the motors
  • Minimum and maximum current auto learning for each motor
  • Dry running with level control and minimum current
  • Deactivable alternarce of the 3 motors
  • 3s delay between the starting of the 3 motors
  • Automating switching in case of motor failure
  • Loss of pressure control
  • Adjustable mains supply returning
  • Operation with pressure switches, float switches, probes and pressure transducer

INPUTS / OUTPUTS

  • Very low voltage input for start 1 pressure switch
  • Very low voltage input for start 2 pressure switch
  • Very low voltage input for emergency pressure switch
  • Input 4-20mA
  • N°2 very low voltage inputs for float switches or probes

PROTECTIONS

  • Maximum and minimum current protection for each motor with alarm
  • Lack and sequence of phases protection with automatic resent and alarm
  • Minimum and maximum voltage protection with automatic reset and alarm

THREE-PHASE 400Vac +15/-20% 50/60Hz

CODE TYPE POWER OPERATING DIMENSIONS mm WEIGHT BOX
kW HP CURRENT (A) A-H L-W P-D Kg
SA656.02L THREE MOTORS PLUS 400 10 0,37÷7,5 0,5÷10 3x(0,5÷16) 380 300 150 6,4 05
SA656.03L THREE MOTORS PLUS 400 15 2,2÷11 3÷15 3x(4÷25) 460 380 150 7,4 07
SA656.04L THREE MOTORS PLUS 400 20 7,5÷15 10÷20 3x(16÷32) 460 380 150 7,5 07



OPTIONALS

CODE TYPE
OP100.29/B On board GPRS expansion
OP100.39/B On board Ethernet expansion
OP100.49/B On board MODBUS RS-485 – BMS expansion
OP100.59/B On board Ethernet – WiFi – RS-485 expansion
OP100.01 3 level probes kit
OP100.05/1 Wired three-phase surge arrester type 2
OP200.00 Alarm output 12Vdc 200mA and pure contact
OP100.13/1/12 Wired siren 12Vdc
OP100.13/2/12L Wired flashing Led lamp 12Vdc
SS100.00 Visual and acoustic alarm indicator (BASIC ALARM VA012)
AC300.11.10-004.20 Pressure transducer 0-10bar 4-20mA with 4m cable
AC300.11.16-004.20 Pressure transducer 0-16bar 4-20mA with 4m cable
AC300.11.25-004.20 Pressure transducer 0-25bar 4-20mA with 4m cable
For more optionals click here



SPARE PARTS

CODE TYPE
AC100.22/1/30 Display electronic board with flat cable 20pin 30cm
SD656.20/1 Three-phase PRESS CONTROL PLUS electronic board 20A
SD656.30-40/1 Three-phase PRESS CONTROL PLUS electronic board 30-40A
