STAR DELTA 3

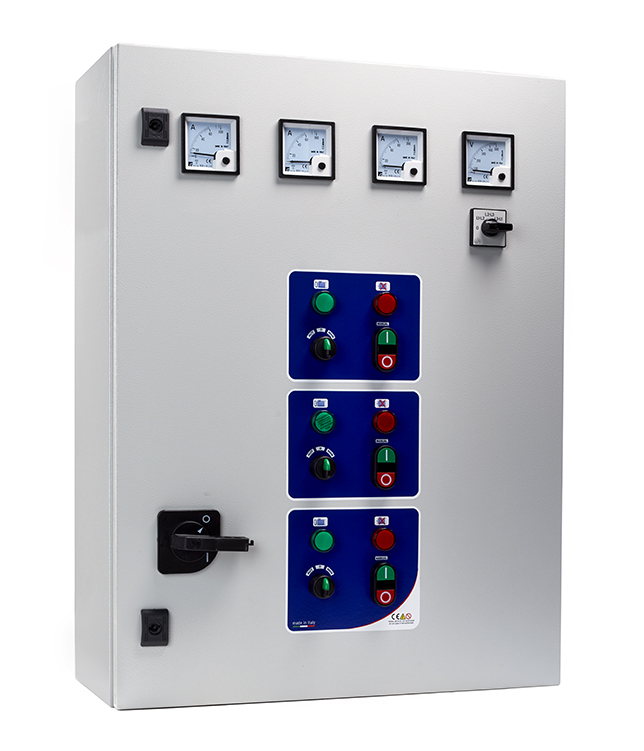

Star delta starting electromechanical control panel 3 motors with voltmeter and ammeters
Applications
Optional
GENERAL SPECIFICATIONS
- Operating voltage 400Vac ±10% 50/60Hz
- General disconnecting switch with door lock
- N°3 selector switches for automatic -0- manual operation
- N°3 start-stop buttons for manual operation
- N°3 adjustable star delta timers
- N°3 running Led lights
- N°3 overload Led lights
- Analog voltmeter 72×72
- Voltmeter selector switch
- N°3 analog ammeters 72×72
- Auxiliary circuit protection fuse
- Transformer for auxiliary circuit
- Protection fuse for each motor
- N°9 contactors
- N°3 thermal relays (internal reset)
- Connection terminal board
- External metal box
- Protection degree IP55
- Operating temperature -5/+40°C
PROTECTIONS
- Maximum current protection for each motor with alarm
INPUTS/OUTPUTS
- N°2 very low voltage input for pressure switch or float switches (motor 1 minimum/maximum level)
- N°2 very low voltage input for pressure switch or float switches (motor 2 minimum/maximum level)
- N°2 very low voltage input for pressure switch or float switches (motor 3 minimum/maximum level)
THREE-PHASE 400Vac ±10% 50/60Hz |
|||||||||
| CODE | TYPE | POWER | MAX | DIMENSIONS mm | WEIGHT | BOX | |||
|---|---|---|---|---|---|---|---|---|---|
| kW | HP | CURRENT (A) | A-H | L-W | P-D | Kg | |||
| SQ720.00 | STAR DELTA 3 400 7,5 | 5,5 | 7,5 | 3x(14) | 800 | 600 | 290 | 39 | 80 |
| SQ720.01 | STAR DELTA 3 400 10 | 7,5 | 10 | 3x(18) | 800 | 600 | 290 | 39 | 80 |
| SQ720.09 | STAR DELTA 3 400 12,5 | 9,2 | 12,5 | 3x(21) | 800 | 600 | 290 | 39 | 80 |
| SQ720.02 | STAR DELTA 3 400 15 | 11 | 15 | 3x(25) | 800 | 600 | 290 | 39 | 80 |
| SQ720.10 | STAR DELTA 3 400 17,5 | 13 | 17,5 | 3x(29) | 800 | 600 | 290 | 39 | 80 |
| SQ720.03 | STAR DELTA 3 400 20 | 15 | 20 | 3x(34) | 800 | 600 | 290 | 41 | 80 |
| SQ720.04 | STAR DELTA 3 400 25 | 18,5 | 25 | 3x(41) | 800 | 600 | 290 | 41 | 80 |
| SQ720.05 | STAR DELTA 3 400 35 | 22÷26 | 30÷35 | 3x(58) | 1000 | 800 | 370 | 65 | 103 |
| SQ720.06 | STAR DELTA 3 400 40 | 30 | 40 | 3x(66) | 1000 | 800 | 370 | 67 | 103 |
| SQ720.07 | STAR DELTA 3 400 50 | 37 | 50 | 3x(82) | 1000 | 800 | 370 | 72 | 103 |
| SQ720.08 | STAR DELTA 3 400 60 | 45 | 60 | 3x(100) | 1000 | 800 | 370 | 74 | 103 |
OPTIONALS |
|||||||||
| CODE | TYPE | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| OP100.04/4 | Wired lack, sequence and asymmetry of phases relay | ||||||||
| OP100.04/5 | Wired lack, sequence and asymmetry of phases relay, minimum and maximum voltage | ||||||||
| OP100.05/1 | Wired three-phase surge arrester type 2 | ||||||||
| OP100.15/024 | Wired hour counter 24Vac 48×48 | ||||||||
| OP100.16/1 | Wired analog daily timer 72×72 without reserve | ||||||||
| OP100.16/2 | Wired analog daily timer 72×72 with reserve | ||||||||
| OP100.18 | Wired starting delay timer (supply mains waiting) | ||||||||
| OP100.19/4 | Wired module GSM 4 inputs/4 outputs | ||||||||
| OP100.09/2 | Wired lithium battery 3,7Vdc 600mAh | ||||||||
| OP333.230 | Wired 230Vac MULTI 3 control relay for pressure booster and sewage | ||||||||
| OP210.01 | Wired very low voltage input for motor klixon | ||||||||
| OP200.01 | Alarm output 24Vac and pure contact | ||||||||
| OP100.13/1 | Wired siren shut-off button | ||||||||
| OP100.13/1/24 | Wired siren 24Vac/dc | ||||||||
| OP100.13/2/24L | Wired flashing Led lamp 24Vac | ||||||||
| SS100.01 | Visual and acoustic alarm indicator (BASIC ALARM VA024) | ||||||||
