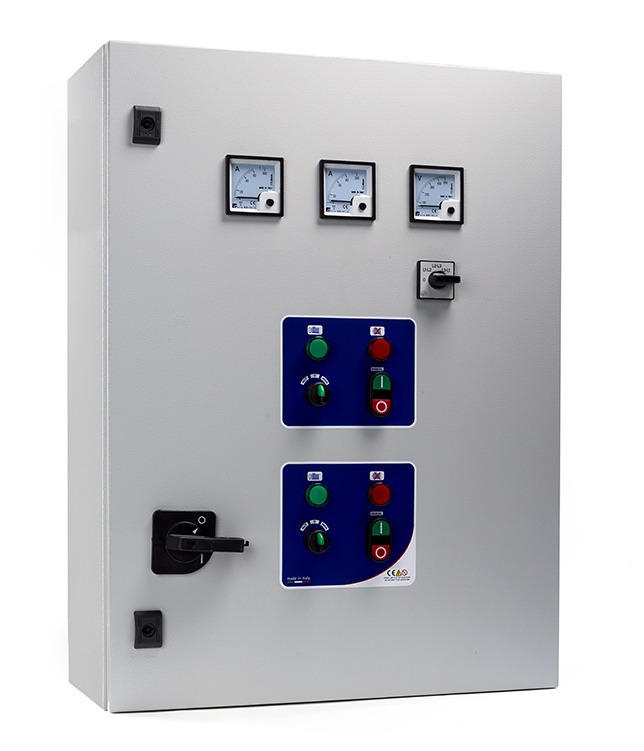

Star delta starting electromechanical control panel 2 motors with voltmeter and ammeters

Categories: ,

GENERAL SPECIFICATIONS

  • Operating voltage 400Vac ±10% 50/60Hz
  • General disconnecting switch with door lock
  • N°2 selector switches for automatic -0- manual operation
  • N°2 start-stop buttons for manual operation
  • N°2 adjustable star delta timers
  • N°2 running Led lights
  • N°2 overload Led lights
  • Analog voltmeter 72×72
  • Voltmeter selector switch
  • N°2 analog ammeters 72×72
  • Auxiliary circuit protection fuse
  • Transformer for auxiliary circuit
  • Protection fuse for each motor
  • N°6 contactors
  • N°2 thermal relays (internal reset)
  • Connection terminal board
  • External metal box
  • Protection degree IP55
  • Operating temperature -5/+40°C

PROTECTIONS

  • Maximum current protection for each motor with alarm

INPUTS/OUTPUTS

  • N°2 very  low voltage inputs for pressure switch or float switches (motor 1 minimum/maximum level)
  • N°2 very  low voltage inputs for pressure switch or float switches (motor 2 minimum/maximum level)

THREE-PHASE 400Vac ±10% 50/60Hz
CODE TYPE POWER MAX DIMENSIONS mm WEIGHT BOX
kW HP CURRENT (A) A-H L-W P-D Kg
SQ710.00 STAR DELTA 2 400 7,5 5,5 7,5 2x(14) 600 400 230 22 60
SQ710.01 STAR DELTA 2 400 10 7,5 10 2x(18) 600 400 230 22 60
SQ710.14 STAR DELTA 2 400 12,5 9,2 12,5 2x(21) 600 400 230 22 60
SQ710.02 STAR DELTA 2 400 15 11 15 2x(25) 600 400 230 22 60
SQ710.15 STAR DELTA 2 400 17,5 13 17,5 2x(29) 600 400 230 22 60
SQ710.03 STAR DELTA 2 400 20 15 20 2x(34) 700 500 240 29 70
SQ710.04 STAR DELTA 2 400 25 18,5 25 2x(41) 700 500 240 29 70
SQ710.05 STAR DELTA 2 400 35 22÷26 30÷35 2x(58) 800 600 290 39 80
SQ710.06 STAR DELTA 2 400 40 30 40 2x(66) 800 600 290 39 80
SQ710.07 STAR DELTA 2 400 50 37 50 2x(82) 800 600 290 43 80
SQ710.08 STAR DELTA 2 400 60 45 60 2x(100) 800 600 290 45 80
SQ710.09 STAR DELTA 2 400 75 51,5÷55 70÷75 2x(121) 1000 800 370 66 103
SQ710.10 STAR DELTA 2 400 80 60 80 2x(132) 1000 800 370 68 103
SQ710.11 STAR DELTA 2 400 90 66 90 2x(146) 1200 800 370 74 122
SQ710.12 STAR DELTA 2 400 100 75 100 2x(165) 1200 800 370 78 122
SQ710.13 STAR DELTA 2 400 125 92 125 2x(203) 1200 800 370 85 122



OPTIONALS
CODE TYPE
OP100.04/4 Wired lack, sequence and asymmetry of phases relay
OP100.04/5 Wired lack, sequence and asymmetry of phases relay, minimum and maximum voltage
OP100.05/1 Wired three-phase surge arrester type 2
OP100.15/024 Wired hour counter 24Vac 48×48
OP100.15/110 Wired hour counter 110Vac 48×48
OP100.16/1 Wired analog daily timer 72×72 without reserve
OP100.16/2 Wired analog daily timer 72×72 with reserve
OP100.18 Wired starting delay timer (supply mains waiting)
OP100.19/4 Wired module GSM 4 inputs/4 outputs
OP100.09/2 Wired lithium battery 3,7Vdc 600mAh
OP332.230 Wired 230Vac MULTI 2 control relay for pressure booster and sewage
OP210.01 Wired very low voltage input for motor klixon
OP200.01 Alarm output 24Vac and pure contact
OP100.13/1 Wired siren shut-off button
OP100.13/1/24 Wired siren 24Vac/dc
OP100.13/2/24L Wired flashing Led lamp 24Vac
SS100.01 Visual and acoustic alarm indicator (BASIC ALARM VA024)
