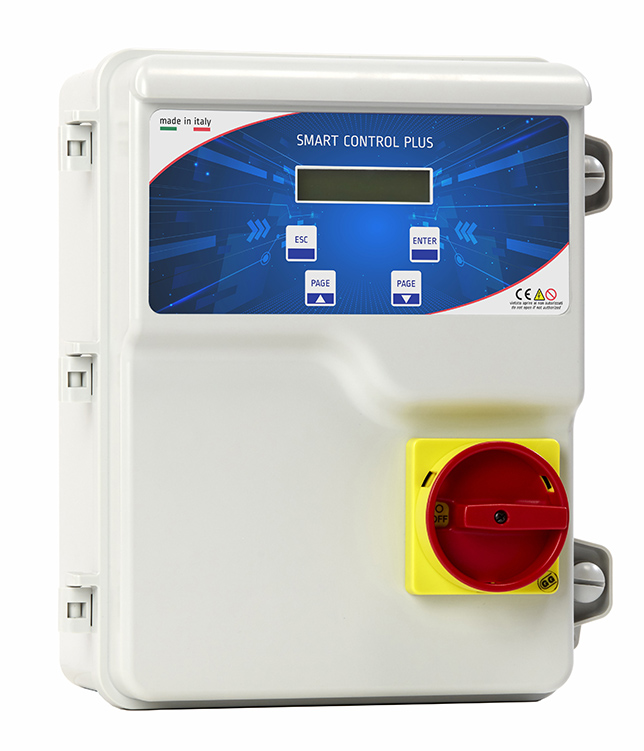

SMART CONTROL PLUS

SMART CONTROL PLUS

Device for GRPS/ETHERNET/WiFi remote control with display



  • REMOTE CONTROL SALUPO CONNECT
  • CUSTOMIZABLE INPUTS AND OUTPUTS
  • PROGRAMMABLE ANALOG INPUTS
  • EVENTS DATA LOGGER

ADVANTAGES

  • Multilingual Display LCD to visualize:
    • Digital inputs logic status
    • Digital outputs logic status
    • Percentage value detected by analog inputs
  • Possibility to remote control any type of system
  • Customization of the names of the inputs and outputs
  • Customization of the measurement range detected by the 4-20m probes
  • Possibility to receive notifications in case of variation of the inputs

GENERAL SPECIFICATIONS

  • Operating voltage 24Vdc/230Vac
  • General disconnecting switch with door lock
  • Quad-band GSM module (SC100.29/xx)
  • GSM/GPRS antenna with magnetic base and 3 m cable
  • Ethernet module (SC100.39/xx)
  • Ethernet/WiFi module (SC100.59/xx)
  • RJ45 connector (SC100.39/xx-SC100.59/xx)
  • Connection terminal board
  • External thermoplastic box
  • Cable glands
  • Protection degree IP65
  • Operating temperature -5/+40° C
  • Relative humidity 60% at 50°C (not condensed)



INPUTS / OUTPUTS

  • N°12 completely programmable low voltage inputs
  • N°4 inputs for 4-20mA probe
  • N°4 outputs max 5A NC-COM-NO (pure contact)
CODE TYPE INPUTS OUTPUTS POWER SUPPLY DIMENSIONS mm WEIGHT BOX
DIGITAL ANALOG A-H L-W P-D Kg
SC100.29/024 SMART CONTROL PLUS GPRS 12 4 4 24Vdc 285 245 140 2,2 03
SC100.29/230 SMART CONTROL PLUS GPRS 12 4 4 230Vac 285 245 140 2,2 03
SC100.39/024 SMART CONTROL PLUS ETHERNET 12 4 4 24Vdc 285 245 140 2,2 03
SC100.39/230 SMART CONTROL PLUS ETHERNET 12 4 4 230Vac 285 245 140 2,2 03
SC100.59/024 SMART CONTROL PLUS ETHERNET – WIFI – RS-485 12 4 4 24Vdc 285 245 140 2,2 03
SC100.59/230 SMART CONTROL PLUS ETHERNET – WIFI – RS-485 12 4 4 230Vac 285 245 140 2,2 03
