MULTIPLUS 3

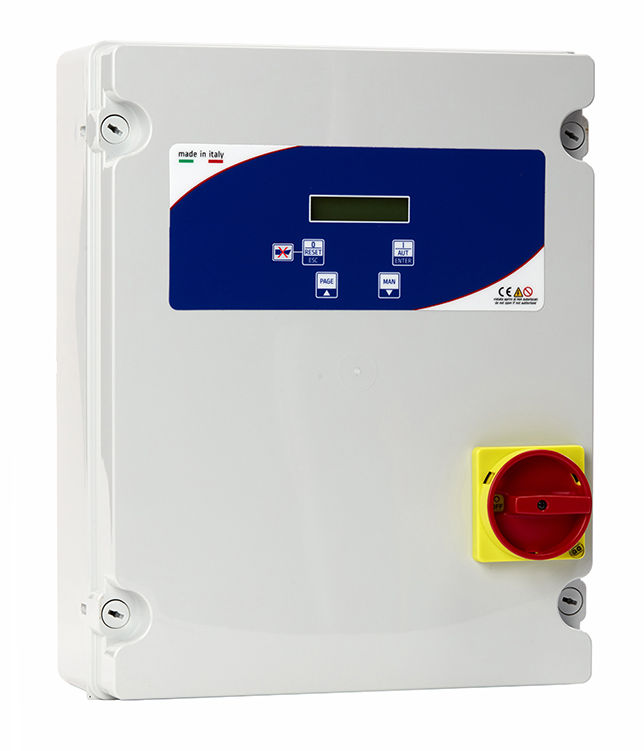

Direct starting electronic control panel 3 motors for pressure booster, clean water and sewage with display
-
Multi application control panel
-
Motor’s data auto learning
-
Events and alarms data logger
-
Protection for motherboard
-
Remote control SALUPO CONNECT
Applications
Optional
GENERAL SPECIFICATIONS
- Operating voltage 400Vac +15/-20% 50/60Hz
- General disconnecting switch with door lock
- Button for automatic operation
- Button for manual operation (stable/unstable)
- Siren shut-off button
- Auxiliary circuit protection fuse
- Motors’ protection fuse
- N°3 contactors
- External thermoplastic box
- Cable glands
- Protection degree IP65
- Operating temperature -5/+40°C
ADVANTAGES
- Multilingual Display LCD to visualize:
- Operating voltage
- Current for each motor
- Hour counter for each motor
- Pressure switches status
- Level status
- System pressure with pressure transducer
- Tank level in meters with piezoresistive probe
- All information concerning the operation of the motors
- Minimum and maximum current auto learning for each motor
- Dry running with level control and minimum current
- Deactivable alternance of the 3 motors
- 3s delay between the starting of the 3 motors
- Automatic switching in case of motor failure
- Loss of pressure control
- Adjustable mains supply returning
- Siren shut-off
- Operation with pressure switches, float switches, probes, pressure transducer and piezoresistive probe 4-20mA
INPUTS/OUTPUTS
- N°5 very low voltage inputs
- Input 4-20mA
- N°3 very low voltage inputs for motor klixon
- N°2 alarm outputs 12Vdc max 200mA for siren and flashing Led lamp
- Alarm output max 5A NC-COM-NO (pure contact)
PROTECTIONS
- Maximum and minimum current protection for each motor with alarm
- Lack and sequence of phases protection with automatic resent and alarm
- Minimum and maximum voltage protection with automatic reset and alarm
- Klixon protection for each motor with automatic reset and alarm
THREE-PHASE 400Vac +15/-20% 50/60Hz |
|||||||||
| CODE | TYPE | POWER | OPERATING | DIMENSIONS mm | WEIGHT | BOX | |||
|---|---|---|---|---|---|---|---|---|---|
| kW | HP | CURRENT (A) | A-H | L-W | P-D | Kg | |||
| SA696.02L | MULTIPLUS 3 400 10 | 0,37÷7,5 | 0,5÷10 | 3x(0,5÷16) | 380 | 300 | 150 | 6,4 | 05 |
| SA696.03L | MULTIPLUS 3 400 15 | 2,2÷11 | 3÷15 | 3x(4÷25) | 460 | 380 | 150 | 7,4 | 07 |
| SA696.04L | MULTIPLUS 3 400 20 | 7,5÷15 | 10÷20 | 3x(16÷32) | 460 | 380 | 150 | 7,5 | 07 |
OPTIONALS |
|
| CODE | TYPE |
|---|---|
| OP100.29/B | On board GPRS expansion |
| OP100.39/B | On board Ethernet expansion |
| OP100.49/B | On board MODBUS RS-485 – BMS expansion |
| OP100.59/B | On board Ethernet – WiFi – expansion |
| OP100.99/B | On board expansion to detect water in the oil chamber up to 3 motors |
| OP100.01 | 3 level probes kit |
| OP100.05/1 | Wired three-phase surge arrester type 2 |
| OP100.13/1/12 | Wired siren 12Vdc |
| OP100.13/2/12L | Wired flashing Led lamp 12Vdc |
| SS100.00 | Visual and acoustic alarm indicator (BASIC ALARM VA012) |
| AC300.11.10-004.20 | Pressure transducer 0-10bar 4-20mA with 4m cable |
| AC300.11.16-004.20 | Pressure transducer 0-16bar 4-20mA with 4m cable |
| AC300.11.25-004.20 | Pressure transducer 0-25bar 4-20mA with 4m cable |
| AC300.20.01-005.00 | Piezoresistive probe 4-20mA with 5m cable |
| AC300.20.01-010.00 | Piezoresistive probe 4-20mA with 10m cable |
| AC300.20.02-010.20 | Piezoresistive probe 4-20mA with 10m cable for sewage |
For more optionals click here
SPARE PARTS |
|||||||||
| CODE | TYPE | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| AC100.22/1/30 | Display electronic board with flat cable 20pin 30cm | ||||||||
| SD696.20 | Three-phase MULTIPLUS 3 electronic board 20A | ||||||||
| SD696.30-40 | Three-phase MULTIPLUS 3 electronic board 30-40A | ||||||||
