LEVEL PLUS

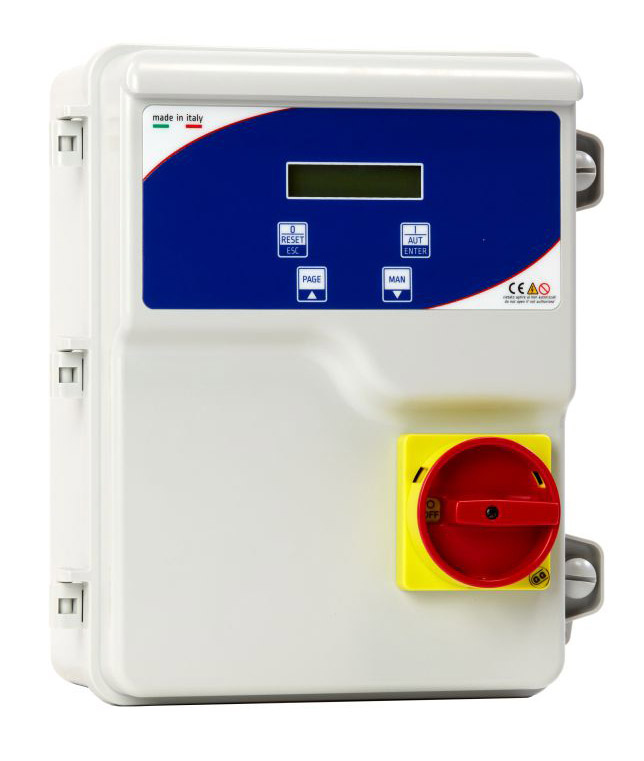

Direct starting electronic control panel 1 motor for clean water with display
-
Multi application control panel
-
Motor’s data auto learning
-
Single-phase version with power relay for inductive loads (up to 31A)
-
Protection for motherboard
-
Remote control SALUPO CONNECT
Applications
Optional
GENERAL SPECIFICATIONS
- Operating voltage 230Vac +15/-20% 50/60Hz (SA672.xx)
- Operating voltage 400Vac +15/-20% 50/60Hz (SA675.xx)
- General disconnecting switch with door lock
- Button for automatic operation
- Button for manual operation (stable/unstable)
- Auxiliary circuit protection fuse
- Motor protection fuse
- Contactor (SA675.xx)
- External thermoplastic box
- Cable glands
- Protection degree IP65
- Operating temperature -5/+50°C
- Relative humidity 60% at 50°C (not condensed)
ADVANTAGES
- Multilingual Display LCD to visualize:
- Operating voltage
- Current
- Hour counter
- Level status
- All information concerning the operation of the motor
- Minimum and maximum current auto learning for each motor
- Dry running with 3 or 2 timed probes level control and minimum current
- Adjustable probes sensitivity
- Emptying/Filling function
- Adjustable mains supply returning
- Operation with pressure switch, float switch and probes
INPUTS/OUTPUTS
- Very low voltage input for level control (3 or 2 timed probes)
- N°2 very low voltage inputs for pressure switch or float switches or probes
PROTECTIONS
- Maximum and minimum current protection with alarm
- Lack and sequence of phases protection with automatic resent and alarm
- Minimum and maximum voltage protection with automatic reset and alarm
SINGLE-PHASE 230Vac +15/-20% 50/60Hz |
|||||||||
| CODE | TYPE | POWER | OPERATING | DIMENSIONS mm | WEIGHT | BOX | |||
|---|---|---|---|---|---|---|---|---|---|
| kW | HP | CURRENT (A) | A-H | L-W | P-D | Kg | |||
| SA672.00 | LEVEL PLUS 230 | 0,37÷2,2 | 0,5÷3 | 2÷18 | 285 | 245 | 140 | 2,3 | 03 |
THREE-PHASE 400Vac +15/-20% 50/60Hz |
|||||||||
| CODE | TYPE | POWER | OPERATING | DIMENSIONS mm | WEIGHT | BOX | |||
|---|---|---|---|---|---|---|---|---|---|
| kW | HP | CURRENT (A) | A-H | L-W | P-D | Kg | |||
| SA675.02L | LEVEL PLUS 400 10 | 0,37÷7,5 | 0,5÷10 | 0,5÷16 | 285 | 245 | 140 | 2,8 | 03 |
| SA675.03L | LEVEL PLUS 400 15 | 2,2÷11 | 3÷15 | 4÷25 | 345 | 285 | 165 | 3,4 | 04 |
| SA675.04L | LEVEL PLUS 400 20 | 7,5÷15 | 10÷20 | 16÷32 | 345 | 285 | 165 | 3,5 | 04 |
| SA675.05L | LEVEL PLUS 400 22 | 7,5÷16 | 10÷22 | 16÷36 | 380 | 300 | 150 | 4,9 | 05 |
| SA675.06L | LEVEL PLUS 400 25 | 7,5÷18,5 | 10÷25 | 16÷45 | 380 | 300 | 210 | 5,8 | 06 |
| SA675.07L | LEVEL PLUS 400 30 | 7,5÷22 | 10÷30 | 16÷52 | 460 | 380 | 210 | 7,1 | 08 |
OPTIONALS |
|
| CODE | TYPE |
|---|---|
| OP100.29/B | On board GPRS expansion |
| OP100.39/B | On board Ethernet expansion |
| OP100.49/B | On board MODBUS RS-485 expansion |
| OP100.59/B | On board Ethernet – WiFi – expansion |
| OP100.01 | 3 level probes kit |
| OP100.17/024 | Wired 24Vac relay complete with socket |
| OP100.17/230 | Wired 230Vac relay complete with socket |
| OP100.05 | Wired single-phase surge arrester type 2 |
| OP100.05/1 | Wired three-phase surge arrester type 2 |
| OP200.00 | Alarm output 12Vdc 200mA and pure contact |
| OP100.13/1/12 | Wired siren 12Vdc |
| OP100.13/2/12L | Wired flashing Led lamp 12Vdc |
| SS100.00 | Visual and acoustic alarm indicator (BASIC ALARM VA012) |
| OP00.10 | Couple of brackets for collar (reference BOX 03-04) |
For more optionals click here
SPARE PARTS |
|||||||||
| CODE | TYPE | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| AC100.22/1/30 | Display electronic board with flat cable 20pin 30cm | ||||||||
| SD672.20/1 | Single-phase LEVEL PLUS electronic board | ||||||||
| SD675.20/1 | Three-phase LEVEL PLUS electronic board 20A | ||||||||
| SD675.30-40/1 | Three-phase LEVEL PLUS electronic board 30-40A | ||||||||
| SD675.60/1 | Three-phase LEVEL PLUS electronic board 60A | ||||||||
