INVERTER PLUS 1

INVERTER PLUS 1

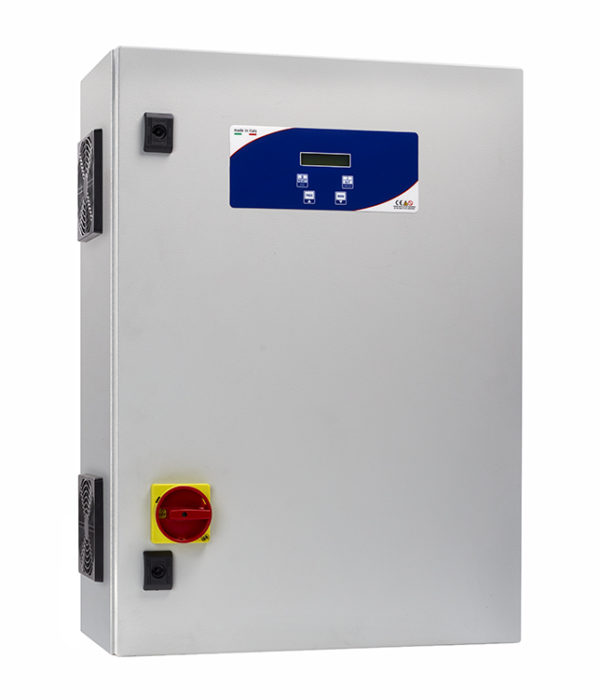

Inverter starting electronic control panel 1 motor with display

  • Easy to program
  • Programmable set-point
  • Anti-clogging system with running inversion
  • Digital thermostat
  • Events and alarm data logger
  • Protection for motherboard
  • Remote control SALUPO CONNECT
Categories: ,

GENERAL SPECIFICATIONS

  • Operating voltage 230Vac ±10% 50/60Hz (SQ703.2x)
  • Operating voltage 400Vac ±10% 50/60Hz (SQ704.2x)
  • General disconnecting switch with door lock
  • Button for automatic operation
  • Button for manual operation
  • Auxiliary circuit protection fuse
  • Inverter protection fuse
  • Inverter
  • Forced ventilation with filters
  • Connection terminal board
  • External metal box
  • Protection degree IP54
  • Operating temperature -5/+40°C

ADVANTAGES

  • Multilingual Display LCD to visualize:
    • Frequency
    • Current
    • Cosφ
    • Hour counter
    • System pressure with pressure transducer
    • Tank level in meters with piezoresistive probe
    • Internal temperature of the control panel
    • All information concerning the operation of the motor
  • Anti-clogging system with running inversion at start-up and in case of blockage
  • Dry running with cosφ
  • Up to 4 programmable set-point
  • Loss of pressure control
  • Adjustable mains supply returning
  • PID operation
  • Operation with potentiometer

INPUTS/OUTPUTS

  • Input 4-20mA
  • Very low voltage input galvanically isolated for external command
  • N°4 very low voltage inputs galvanically isolated for set-point

PROTECTIONS

  • Maximum current protection with alarm
  • Lack of phases protection with alarm
  • Earth leakage protection with alarm

SINGLE-PHASE 230Vac ±10% / Output 3∼230Vac 50/60Hz
CODE TYPE POWER MAX DIMENSIONS mm WEIGHT BOX
kW HP CURRENT (A) A-H L-W P-D Kg
SQ703.20 INVERTER PLUS 1 230 1 0,75 1 4,2 400 300 230 12 41
SQ703.21 INVERTER PLUS 1 230 2 1,5 2 7,5 400 300 230 13 41
SQ703.22 INVERTER PLUS 1 230 3 2,2 3 10 400 300 230 14 41
N.B.: When ordering, check the power and the rated current of the motor



THREE-PHASE 400Vac ±10% / Output 3∼400Vac 50/60Hz
CODE TYPE POWER MAX DIMENSIONS mm WEIGHT BOX
kW HP CURRENT (A) A-H L-W P-D Kg
SQ704.20 INVERTER PLUS 1 400 1 0,75 1 2,5 400 300 230 11 41
SQ704.21  INVERTER PLUS 1 400 2 1,5 2 4 400 300 230 12 41
SQ704.22  INVERTER PLUS 1 400 3 2,2 3 6 400 300 230 13 41
SQ704.23  INVERTER PLUS 1 400 5,5 4 5,5 9 400 300 230 13 41
SQ704.24  INVERTER PLUS 1 400 7,5 5,5 7,5 12 500 400 230 18 50
SQ704.25  INVERTER PLUS 1 400 10 7,5 10 16 500 400 230 18 50
SQ704.26  INVERTER PLUS 1 400 15 11 15 24 700 500 290 31 71
SQ704.27  INVERTER PLUS 1 400 20 15 20 30 700 500 290 32 71
SQ704.28  INVERTER PLUS 1 400 25 18,5 25 39 800 600 290 45 80
SQ704.29  INVERTER PLUS 1 400 30 22 30 45 800 600 290 46 80
N.B.: When ordering, check the power and the rated current of the motor



OPTIONALS
CODE TYPE
OP100.29/M Modular GPRS expansion
OP100.39/M Modular Ethernet expansion
OP100.49/M Modular MODBUS RS-485 – BMS expansion
OP100.59/M Modular Ethernet – WiFi – expansion
OP331.230 Wired 230Vac LEVEL control relay
OP100.01 3 level probes kit
OP100.02/7 Wired selector switch 0-1 (set-point)
OP100.17/024 Wired 24Vac relay complete with socket (set-point)
OP100.02/3 Potentiometer to adjust the frequency
OP200.01 Wired single-phase surge arrester type 2
OP100.05/1 Alarm output 24Vac and pure contact
AC208.11.03-011.05 EMC class B mains filter 11A for inverter 0,75-4kW
AC208.11.03-030.05 EMC class B mains filter 30A for inverter 5,5-7,5kW
AC208.11.03-051.05 EMC class B mains filter 51A for inverter 11-15kW
AC208.11.03-060.05 EMC class B mains filter 60A for inverter 18,5W
AC208.11.03-070.05 EMC class B mains filter 70A for inverter 22kW
OP100.22/05 Wired three-phase inductance DV/DT 5,25A with cooling fan
OP100.22/08 Wired three-phase inductance DV/DT 8,4A with cooling fan
OP100.22/11 Wired three-phase inductance DV/DT 11A with cooling fan
OP100.22/17 Wired three-phase inductance DV/DT 17A with cooling fan
OP100.22/32 Wired three-phase inductance DV/DT 32A with cooling fan
OP100.22/43 Wired three-phase inductance DV/DT 43A with cooling fan
AC300.10.10-004.20 Pressure transducer 0-10bar 4-20mA with connector and 4m FRAF cable
AC300.10.16-004.20 Pressure transducer 0-10bar 4-20mA with connector and 4m FRAF cable
AC300.10.25-004.20 Pressure transducer 0-10bar 4-20mA with connector and 4m FRAF cable
AC300.20.01-005.00 Piezoresistive probe 4-20mA with 5m cable
AC300.20.01-010.00 Piezoresistive probe 4-20mA with 10m cable
AC300.20.02-010.00 Piezoresistive probe 4-20mA with 10m cable for sewage
For more optionals click here



SPARE PARTS
CODE TYPE
AC100.22/1/50 Display electronic board with flat cable 20pin 50cm
AC100.22/1/80 Display electronic board with flat cable 20pin 80cm
AC100.22/1/100 Display electronic board with flat cable 20pin 100cm
SD703.024 INVERTER PLUS 1 230 MODBUS-RTU 24Vac electronic board
SD704.024 INVERTER PLUS 1 400 MODBUS-RTU 24Vac electronic board
