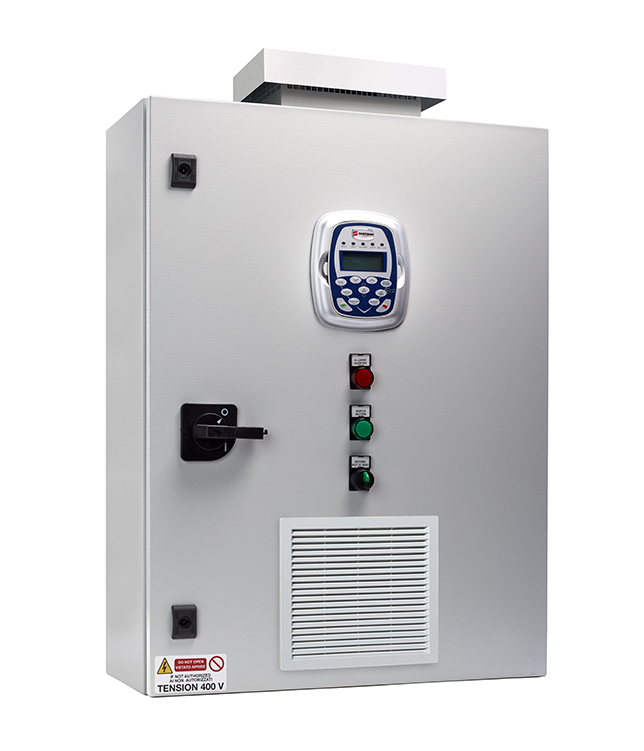

INVERTER IRIS BLUE 1
Inverter starting electronic control panel 1 motor with display
-
Specific software for pumping and water treatment applications
-
Alarma data logger
-
Remote control SALUPO CONNECT
Applications
Optional
GENERAL SPECIFICATIONS
- Operating voltage 400Vac ±10% 50/60Hz
- General disconnecting switch with door lock
- Selector switch for automatic -0- manual operation (stable)
- Running Led light
- Inverter alarm Led light
- Auxiliary circuit protection fuse
- Transformer for auxiliary circuit
- Inverter protection fuse
- Inverter IRIS BLUE with front display
- Forced ventilation complete with filters
- Extraction tower (from 50Hp)
- Thermostat for fan
- External metal box
- Protection degree IP54
- Operating temperature -5/+40°C
ADVANTAGES
- Double initial ramp
- Pipe filling control
- Fire mode (forced operation in case of alarm)
- Sleep/wake up mode (it prolongs the pump delay time to save energy)
- Safe Torque Off (function for the freewheel stop)
- Dry running with cosφ
- Loss of pressure control
- PID operation
INPUTS/OUTPUTS
- Input 4-20mA
- Very low voltage input for external command
PROTECTIONS
- Maximum current protection with alarm
- Lack of phases protection with alarm
- Earth leakage protection with alarm
THREE-PHASE 400Vac ±10% / Output 3∼400Vac 50/60Hz |
|||||||||
| CODE | TYPE | POWER | MAX | DIMENSIONS mm | WEIGHT | BOX | |||
|---|---|---|---|---|---|---|---|---|---|
| kW | HP | CURRENT (A) | A-H | L-W | P-D | Kg | |||
| SQ707.00/01 | INVERTER IRIS BLUE 1 400 5,5 | 2,2÷4 | 3÷5,5 | 10,5 | 600 | 400 | 280 | 24 | 61 |
| SQ707.02 | INVERTER IRIS BLUE 1 400 7,5 | 5,5 | 7,5 | 12,5 | 600 | 400 | 280 | 24 | 61 |
| SQ707.03 | INVERTER IRIS BLUE 1 400 10 | 7,5 | 10 | 16,5 | 600 | 400 | 280 | 24 | 61 |
| SQ707.04/05 | INVERTER IRIS BLUE 1 400 20 | 11 | 15 | 30 | 800 | 600 | 290 | 42 | 80 |
| SQ707.06 | INVERTER IRIS BLUE 1 400 25 | 18,5 | 25 | 41 | 800 | 600 | 290 | 43 | 80 |
| SQ707.07 | INVERTER IRIS BLUE 1 400 30 | 22 | 30 | 57 | 800 | 600 | 290 | 43 | 80 |
| SQ707.08 | INVERTER IRIS BLUE 1 400 40 | 30 | 40 | 60 | 800 | 600 | 290 | 43 | 80 |
| SQ707.09 | INVERTER IRIS BLUE 1 400 50 | 37 | 50 | 80 | 1150 | 800 | 430 | 92 | 104 T |
| SQ707.10 | INVERTER IRIS BLUE 1 400 60 | 45 | 60 | 88 | 1350 | 800 | 470 | 106 | 123 T |
| SQ707.11 | INVERTER IRIS BLUE 1 400 75 | 55 | 75 | 120 | 1350 | 800 | 470 | 111 | 123 T |
| SQ707.12 | INVERTER IRIS BLUE 1 400 100 | 75 | 100 | 145 | 1350 | 800 | 470 | 115 | 123 T |
| SQ707.13 | INVERTER IRIS BLUE 1 400 125 | 92 | 125 | 195 | 1950 | 800 | 470 | 191 | 187 T |
| SQ707.14 | INVERTER IRIS BLUE 1 400 150 | 110 | 150 | 215 | 1950 | 800 | 470 | 201 | 187 T |
| SQ707.15 | INVERTER IRIS BLUE 1 400 180 | 132 | 180 | 240 | 1950 | 800 | 470 | 211 | 187 T |
| SQ707.16 | INVERTER IRIS BLUE 1 400 220 | 160 | 220 | 300 | 1950 | 800 | 470 | 266 | 187 T |
N.B.: When ordering, check the power and the rated current of the motor
OPTIONALS |
|
| CODE | TYPE |
|---|---|
| OP100.29/KIT | GPRS 24Vac DIN board with 2m serial cable |
| OP100.39/KIT | Ethernet 24Vac DIN board with 2m serial cable |
| OP331.230 | Wired 230Vac LEVEL control relay |
| OP100.01 | 3 level probes kit |
| OP100.02/7 | Wired selector switch 0-1 (set-point) |
| OP100.17/024 | Wired 24Vac relay complete with socket (set-point) |
| OP100.02/3 | Potentiometer to adjust the frequency |
| OP100.05/1 | Wired three-phase surge arrester type 2 |
| OP100.22/05 | Wired three-phase inductance DV/DT 5,25A with cooling fan |
| OP100.22/08 | Wired three-phase inductance DV/DT 8,4A with cooling fan |
| OP100.22/11 | Wired three-phase inductance DV/DT 11A with cooling fan |
| OP100.22/17 | Wired three-phase inductance DV/DT 17A with cooling fan |
| OP100.22/32 | Wired three-phase inductance DV/DT 32A with cooling fan |
| OP100.22/43 | Wired three-phase inductance DV/DT 43A with cooling fan |
| OP100.22/68 | Wired three-phase inductance DV/DT 68A with cooling fan |
| OP100.22/92 | Wired three-phase inductance DV/DT 92A with cooling fan |
| OP100.22/142 | Wired three-phase inductance DV/DT 142A with cooling fan |
| OP100.22/252 | Wired three-phase inductance DV/DT 252A with cooling fan |
| OP100.22/360 | Wired three-phase inductance DV/DT 360A with cooling fan |
| AC300.11.10-004.20 | Pressure transducer 0-10bar 4-20mA with connector and 4m FRAF cable |
| AC300.11.16-004.20 | Pressure transducer 0-10bar 4-20mA with connector and 4m FRAF cable |
| AC300.11.25-004.20 | Pressure transducer 0-10bar 4-20mA with connector and 4m FRAF cable |
| AC300.20.01-005.00 | Piezoresistive probe 4-20mA with 5m cable |
| AC300.20.01-010.00 | Piezoresistive probe 4-20mA with 10m cable |
| AC300.20.02-010.20 | Piezoresistive probe 4-20mA with 10m cable for sewage |
For more optionals click here
