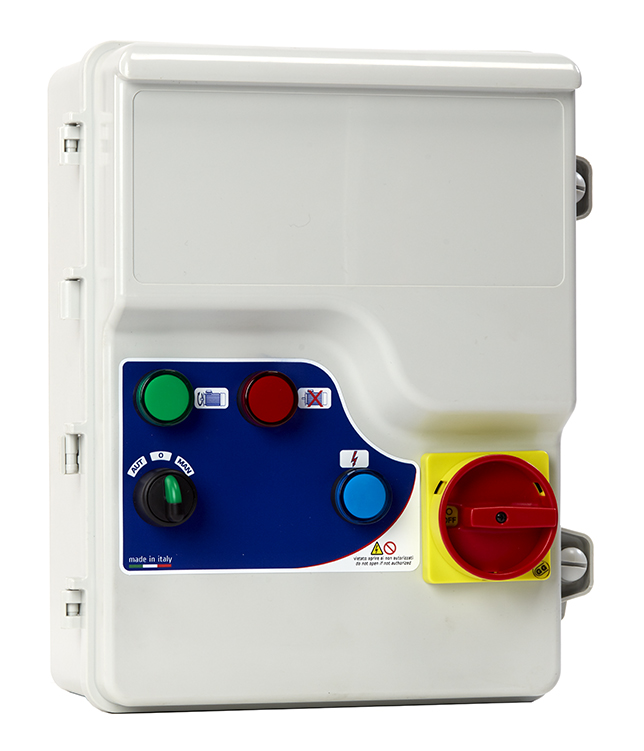

GENERAL SPECIFICATIONS
- Operating voltage 230Vac ±10% 50/60Hz (SA621.xx)
- Operating voltage 400Vac ±10% 50/60Hz (SA631.xx)
- General disconnecting switch with door lock
- Selector switch for automatic -0- manual operation (stable)
- Mains supply Led light
- Running Led light
- Overload Led light
- Auxiliary circuit protection fuse
- Transformer for auxiliary circuit
- Motor protection fuse
- Contactor
- Thermal relay (internal reset)
- Connection terminal board
- External thermoplastic box
- Cable glands
- Protection degree IP65
- Operating temperature -5/+40°C
PROTECTIONS
- Maximum current protection with alarm
INPUTS/OUTPUTS
- N°2 very low voltage inputs for pressure switch or float switches (minimum/maximum level)
SINGLE-PHASE 230Vac ±10% 50/60Hz |
|||||||||
| CODE | TYPE | POWER | OPERATING | DIMENSIONS mm | WEIGHT | BOX | |||
|---|---|---|---|---|---|---|---|---|---|
| kW | HP | CURRENT (A) | A-H | L-W | P-D | Kg | |||
| SA621.00L | EVO 1 230 0,5 | 0,37 | 0,5 | 2,5÷4 | 345 | 285 | 165 | 5,4 | 04 |
| SA621.01L | EVO 1 230 0,75 | 0,55 | 0,75 | 4÷6,5 | 345 | 285 | 165 | 5,4 | 04 |
| SA621.02L | EVO 1 230 1 | 0,75 | 1 | 6,3÷10 | 345 | 285 | 165 | 5,4 | 04 |
| SA621.03L | EVO 1 230 1,5 | 1,1 | 1,5 | 6,3÷10 | 345 | 285 | 165 | 5,4 | 04 |
| SA621.04L | EVO 1 230 2 | 1,5 | 2 | 9÷14 | 345 | 285 | 165 | 5,4 | 04 |
| SA621.05L | EVO 1 230 3 | 2,2 | 3 | 13÷18 | 345 | 285 | 165 | 5,4 | 04 |
THREE-PHASE 400Vac ±10% 50/60Hz |
|||||||||
| CODE | TYPE | POWER | OPERATING | DIMENSIONS mm | WEIGHT | BOX | |||
|---|---|---|---|---|---|---|---|---|---|
| kW | HP | CURRENT (A) | A-H | L-W | P-D | Kg | |||
| SA631.00L | EVO 1 400 0,5 | 0,37 | 0,5 | 1,1÷1,6 | 345 | 285 | 165 | 5,4 | 04 |
| SA631.01/02L | EVO 1 400 1 | 0,55÷0,75 | 0,75÷1 | 1,6÷2,5 | 345 | 285 | 165 | 5,4 | 04 |
| SA631.03L | EVO 1 400 1,5 | 1 | 1,5 | 2,5÷4 | 345 | 285 | 165 | 5,4 | 04 |
| SA631.04L | EVO 1 400 2 | 1,5 | 2 | 4÷6,5 | 345 | 285 | 165 | 5,4 | 04 |
| SA631.06/07L | EVO 1 400 4 | 2,2÷3 | 3÷4 | 6,3÷10 | 345 | 285 | 165 | 5,4 | 04 |
| SA631.09L | EVO 1 400 5,5 | 4 | 5,5 | 9÷14 | 345 | 285 | 165 | 5,4 | 04 |
| SA631.10L | EVO 1 400 7,5 | 5,5 | 7,5 | 13÷18 | 345 | 285 | 165 | 5,4 | 04 |
| SA631.11L | EVO 1 400 10 | 7,5 | 10 | 17÷23 | 345 | 285 | 165 | 5,4 | 04 |
| SA631.12L | EVO 1 400 12,5 | 9,2 | 12,5 | 20÷25 | 345 | 285 | 165 | 5,4 | 04 |
| SA631.13/14L | EVO 1 400 17,5 | 11÷13 | 15÷17,5 | 24÷32 | 345 | 285 | 165 | 5,5 | 04 |
| SA631.15L | EVO 1 400 20 | 15 | 20 | 32÷38 | 380 | 300 | 150 | 6,5 | 05 |
| SA631.16L | EVO 1 400 25 | 18,5 | 25 | 35÷50 | 380 | 300 | 210 | 8,1 | 06 |
OPTIONALS |
|||||||||
| CODE | TYPE | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| OP100.02/0 | Automatic -0- manual selector switch (from stable to unstable) | ||||||||
| OP100.02/1 | Wired start-stop button | ||||||||
| OP100.04/4 | Wired lack, sequence and asymmetry of phases relay | ||||||||
| OP100.04/5 | Wired lack, sequence and asymmetry of phases relay, minimum and maximum voltage | ||||||||
| OP100.05 | Wired single-phase surge arrester type 2 | ||||||||
| OP100.05/1 | Wired three-phase surge arrester type 2 | ||||||||
| OP100.15/024 | Wired hour counter 24Vac 48×48 | ||||||||
| OP100.16/1 | Wired analog daily timer 72×72 without reserve | ||||||||
| OP100.16/2 | Wired analog daily timer 72×72 with reserve | ||||||||
| OP100.19/4 | Wired module GSM 4 inputs/4 outputs | ||||||||
| OP100.09/2 | Wired lithium battery 3,7Vdc 600mAh | ||||||||
| OP331.230 | Wired 230Vac LEVEL control relay | ||||||||
| OP100.01 | 3 level probes kit | ||||||||
| OP210.01 | Wired very low voltage input for motor klixon | ||||||||
| OP200.01 | Alarm output 24Vac and pure contact | ||||||||
| OP100.13/1 | Wired siren shut-off button | ||||||||
| OP100.13/1/24 | Wired siren 24Vac/dc | ||||||||
| OP100.13/2/24L | Wired flashing Led lamp 24Vac | ||||||||
| SS100.01 | Visual and acoustic alarm indicator (BASIC ALARM VA024) | ||||||||
| OP00.10 | Couple of brackets for collar (reference BOX 03-04) | ||||||||
