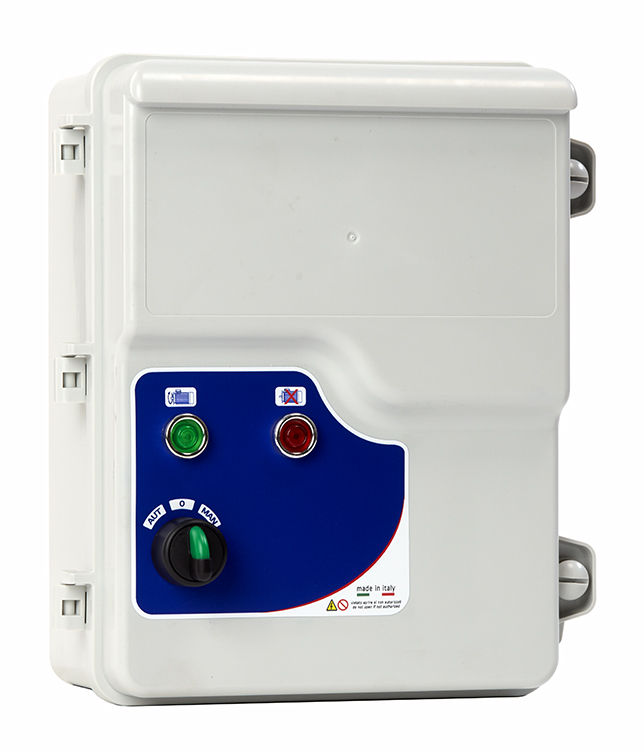

GENERAL SPECIFICATIONS
- Operating voltage 230Vac ±10% 50/60Hz (SA624.xx)
- Operating voltage 400Vac ±10% 50/60Hz (SA634.xx)
- Selector switch for automatic -0- manual operation (stable)
- Running light
- Overload light
- Motor protection fuse
- Contactor
- Thermal relay (internal reset)
- Connection terminal board
- External thermoplastic box
- Cable glands
- Protection degree IP55
- Operating temperature -5/+40°C
PROTECTIONS
- Maximum current protection with alarm
INPUTS/OUTPUTS
- Input for pressure switch or float switch
SINGLE-PHASE 230Vac ±10% 50/60Hz |
|||||||||
| CODE | TYPE | POWER | OPERATING | DIMENSIONS mm | WEIGHT | BOX | |||
|---|---|---|---|---|---|---|---|---|---|
| kW | HP | CURRENT (A) | A-H | L-W | P-D | Kg | |||
| SA624.00L | DIRECT 1 230 0,5 | 0,37 | 0,5 | 2,5÷4 | 285 | 245 | 140 | 2,3 | 03 |
| SA624.01L | DIRECT 1 230 0,75 | 0,55 | 0,75 | 4÷6,5 | 285 | 245 | 140 | 2,3 | 03 |
| SA624.02L | DIRECT 1 230 1 | 0,75 | 1 | 6,3÷10 | 285 | 245 | 140 | 2,3 | 03 |
| SA624.03L | DIRECT 1 230 1,5 | 1,1 | 1,5 | 6,3÷10 | 285 | 245 | 140 | 2,3 | 03 |
| SA624.04L | DIRECT 1 230 2 | 1,5 | 2 | 9÷14 | 285 | 245 | 140 | 2,3 | 03 |
| SA624.05L | DIRECT 1 230 3 | 2,2 | 3 | 13÷18 | 285 | 245 | 140 | 2,3 | 03 |
THREE-PHASE 400Vac ±10% 50/60Hz |
|||||||||
| CODE | TYPE | POWER | OPERATING | DIMENSIONS mm | WEIGHT | BOX | |||
|---|---|---|---|---|---|---|---|---|---|
| kW | HP | CURRENT (A) | A-H | L-W | P-D | Kg | |||
| SA634.00L | DIRECT 1 400 0,5 | 0,37 | 0,5 | 1,1÷1,6 | 285 | 245 | 140 | 2,4 | 03 |
| SA634.01/02L | DIRECT 1 400 1 | 0,55÷0,75 | 0,75÷1 | 1,6÷2,5 | 285 | 245 | 140 | 2,4 | 03 |
| SA634.03L | DIRECT 1 400 1,5 | 1,1 | 1,5 | 2,5÷4 | 285 | 245 | 140 | 2,4 | 03 |
| SA634.04L | DIRECT 1 400 2 | 1,5 | 2 | 4÷6,5 | 285 | 245 | 140 | 2,4 | 03 |
| SA634.06/07L | DIRECT 1 400 4 | 2,2÷3 | 3÷4 | 6,3÷10 | 285 | 245 | 140 | 2,4 | 03 |
| SA634.09L | DIRECT 1 400 5,5 | 4 | 5,5 | 9÷14 | 285 | 245 | 140 | 2,4 | 03 |
| SA634.10L | DIRECT 1 400 7,5 | 5,5 | 7,5 | 13÷18 | 285 | 245 | 140 | 2,4 | 03 |
| SA634.11L | DIRECT 1 400 10 | 7,5 | 10 | 17÷23 | 285 | 245 | 140 | 2,4 | 03 |
| SA634.12L | DIRECT 1 400 12,5 | 9,2 | 12,5 | 20÷25 | 285 | 245 | 140 | 2,4 | 03 |
| SA634.13/14L | DIRECT 1 400 17,5 | 11÷13 | 15÷17,5 | 24÷32 | 285 | 245 | 140 | 2,5 | 03 |
OPTIONALS |
|||||||||
| CODE | TYPE | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| OP100.02/0 | Automatic -0- manual selector switch (from stable to unstable) | ||||||||
| OP100.02/1 | Wired start-stop button | ||||||||
| OP100.03/16 | Wired capacitor 16µF | ||||||||
| OP100.03/20 | Wired capacitor 20µF | ||||||||
| OP100.03/25 | Wired capacitor 25µF | ||||||||
| OP100.03/30 | Wired capacitor 30µF | ||||||||
| OP100.03/35 | Wired capacitor 35µF | ||||||||
| OP100.03/40 | Wired capacitor 40µF | ||||||||
| OP100.03/50 | Wired capacitor 50µF | ||||||||
| OP100.03/60 | Wired capacitor 60µF | ||||||||
| OP100.03/70 | Wired capacitor 70µF | ||||||||
| OP100.03/80 | Wired capacitor 80µF | ||||||||
| OP100.04/4 | Wired lack, sequence and asymmetry of phases relay | ||||||||
| OP100.04/5 | Wired lack, sequence and asymmetry of phases relay, minimum and maximum voltage | ||||||||
| OP331.230/1 | Wired 230Vac LEVEL control relay | ||||||||
| OP331.400/1 | Wired 400Vac LEVEL control relay | ||||||||
| OP100.01 | 3 level probes kit | ||||||||
| OP00.10 | Couple of brackets for collar (reference BOX 03-04) | ||||||||
