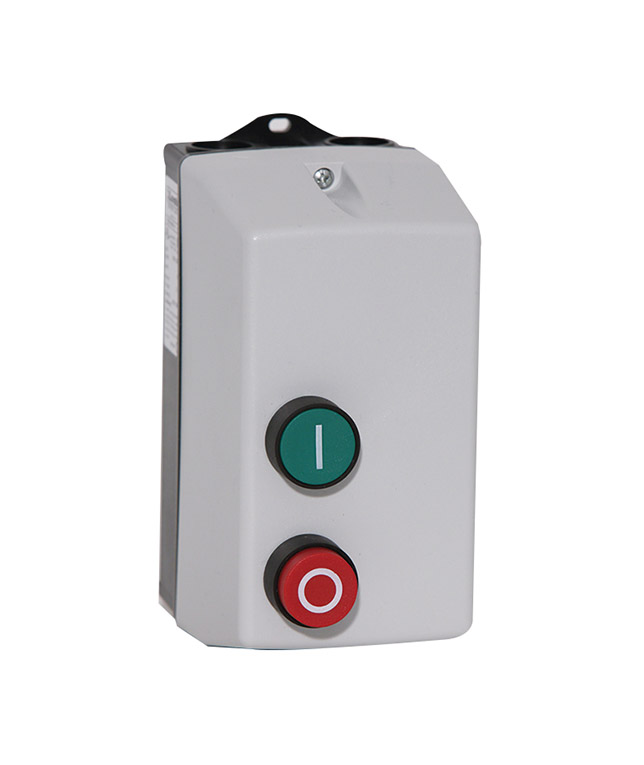

GENERAL SPECIFICATIONS
- Operating voltage 400Vac ±10% 50/60Hz
- Start-stop button
- Contactor
- Thermal relay (internal reset)
- External thermoplastic box
- Protection degree IP55
- Operating temperature -5/+40°C
PROTECTIONS
- Maximum current protection
THREE-PHASE 400Vac ±10% 50/60Hz |
||||||||||
| CODE | TYPE | POWER | OPERATING | DIMENSIONS mm | WEIGHT | BOX | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| kW | HP | CURRENT (A) | A-H | L-W | P-D | Kg | ||||
| SA610.00 | BASIC 1 400 0,5 | 0,37 | 0,5 | 0,9÷1,5 | 184 | 88 | 140 | 0,8 | – | |
| SA610.01/02 | BASIC 1 400 1 | 0,55÷0,75 | 0,75÷1 | 1,4÷2,3 | 184 | 88 | 140 | 0,8 | – | |
| SA610.03/04 | BASIC 1 400 2 | 1,1÷1,5 | 1,5÷2 | 3÷5 | 184 | 88 | 140 | 0,8 | – | |
| SA610.05/06 | BASIC 1 400 3 | 1,8÷2,2 | 2,5÷3 | 4,5÷7,5 | 184 | 88 | 140 | 0,8 | – | |
| SA610.07/08 | BASIC 1 400 5 | 3÷3,7 | 4÷5 | 6÷10 | 184 | 88 | 140 | 0,8 | – | |
| SA610.09 | BASIC 1 400 5,5 | 4 | 5,5 | 9÷15 | 184 | 88 | 140 | 0,8 | – | |
| SA610.10 | BASIC 1 400 7,5 | 5,5 | 7,5 | 13÷18 | 202 | 88 | 155 | 1 | – | |
| SA610.11 | BASIC 1 400 10 | 7,5 | 10 | 17÷23 | 234 | 110 | 170 | 1,2 | – | |
| SA610.12 | BASIC 1 400 12,5 | 9,2 | 12,5 | 20÷25 | 234 | 110 | 170 | 1,2 | – | |
| SA610.13/14 | BASIC 1 400 17,5 | 11÷13 | 15÷17,5 | 24÷32 | 234 | 110 | 170 | 1,3 | – | |
